Index: PD-H-STRONG-80

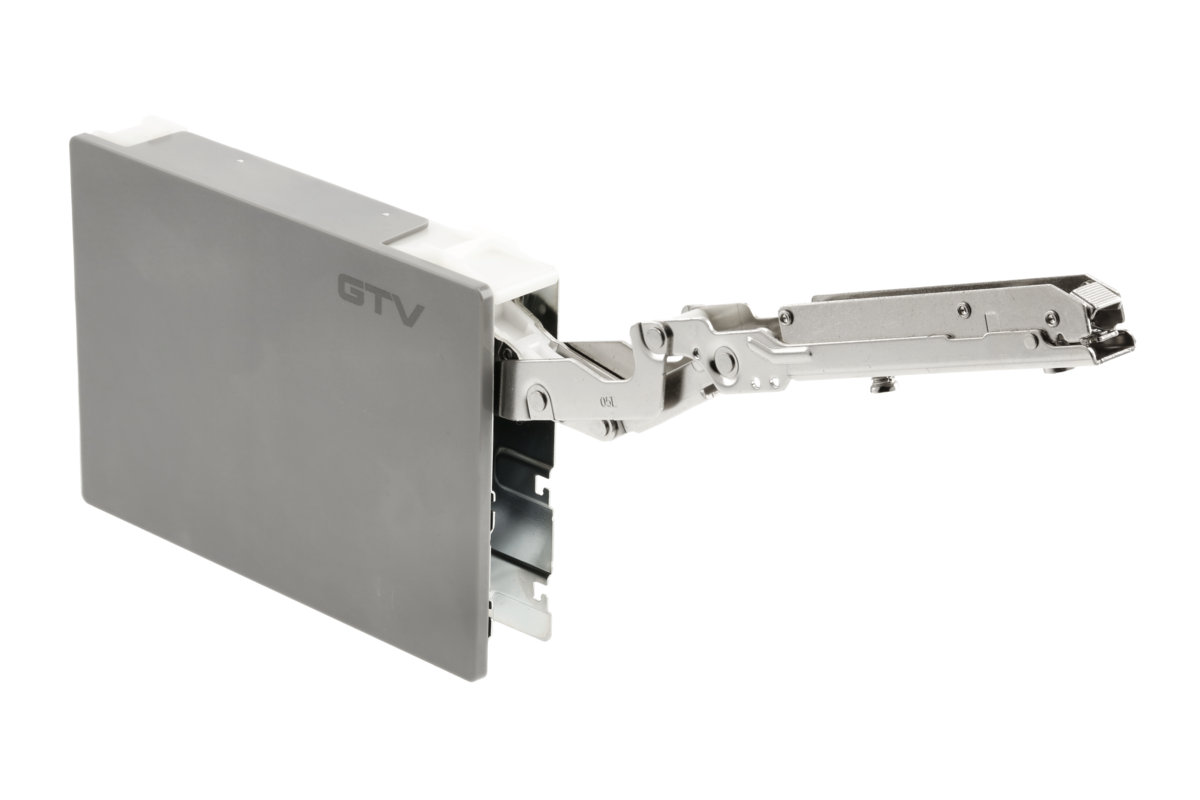

GTV HORIZON lift, front height 350-650 mm, front weight 4.5-10 kg, force 2000-4050. end cap colour anthracite
| Requires a hinge | no |
|---|---|
| Stop in any position | yes |
| Function | Silent closing |
| Material | STEEL, plastic |
| Kit Contents | 2 pcs. jack, 2 pcs. grille (L + P), 2 pcs. Front mount, 2 pcs. Opening angle limiter |
| Screws included | yes |
| Type | mechanical |
| Individual packaging | yes |
| Spring force | Strong |
| Colour | anthracite |
| Adjustment of the front-end closing time | yes |
| Opening angle adjustment | yes |
| Approximate opening angle [°] | 90 - 105 |
Product description

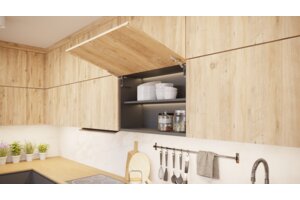

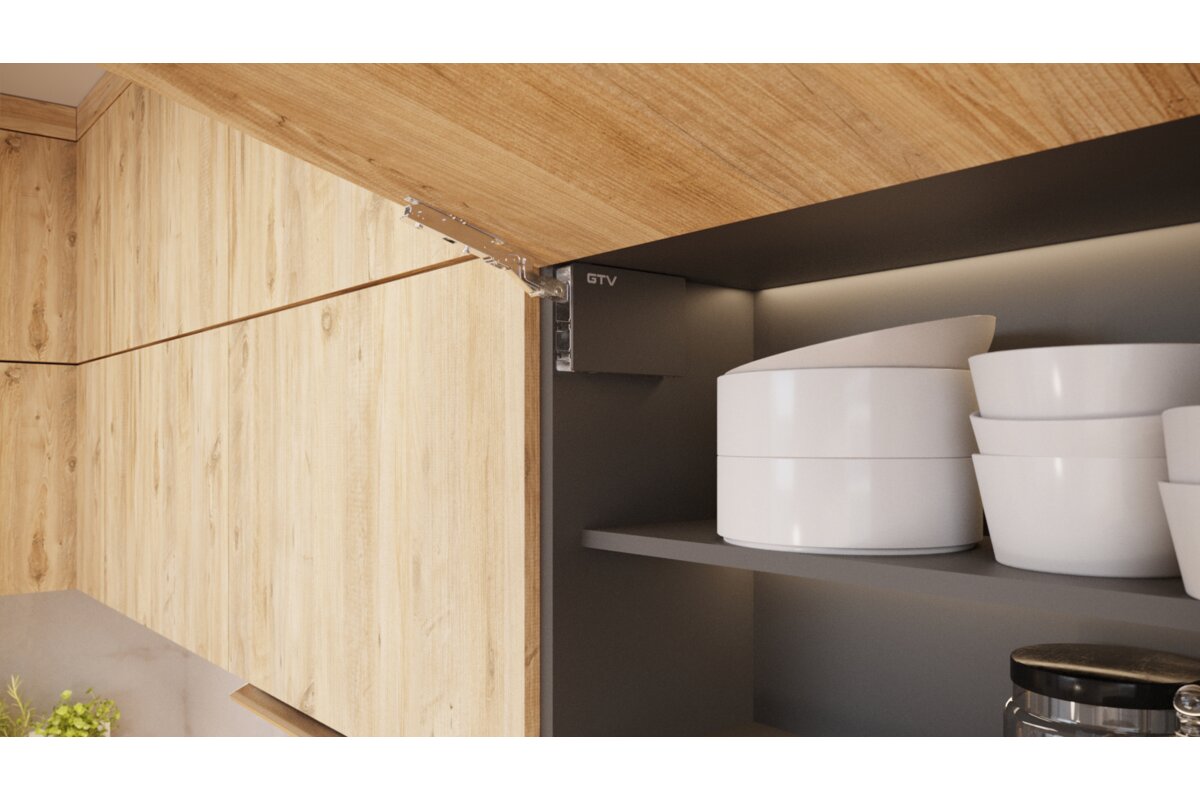

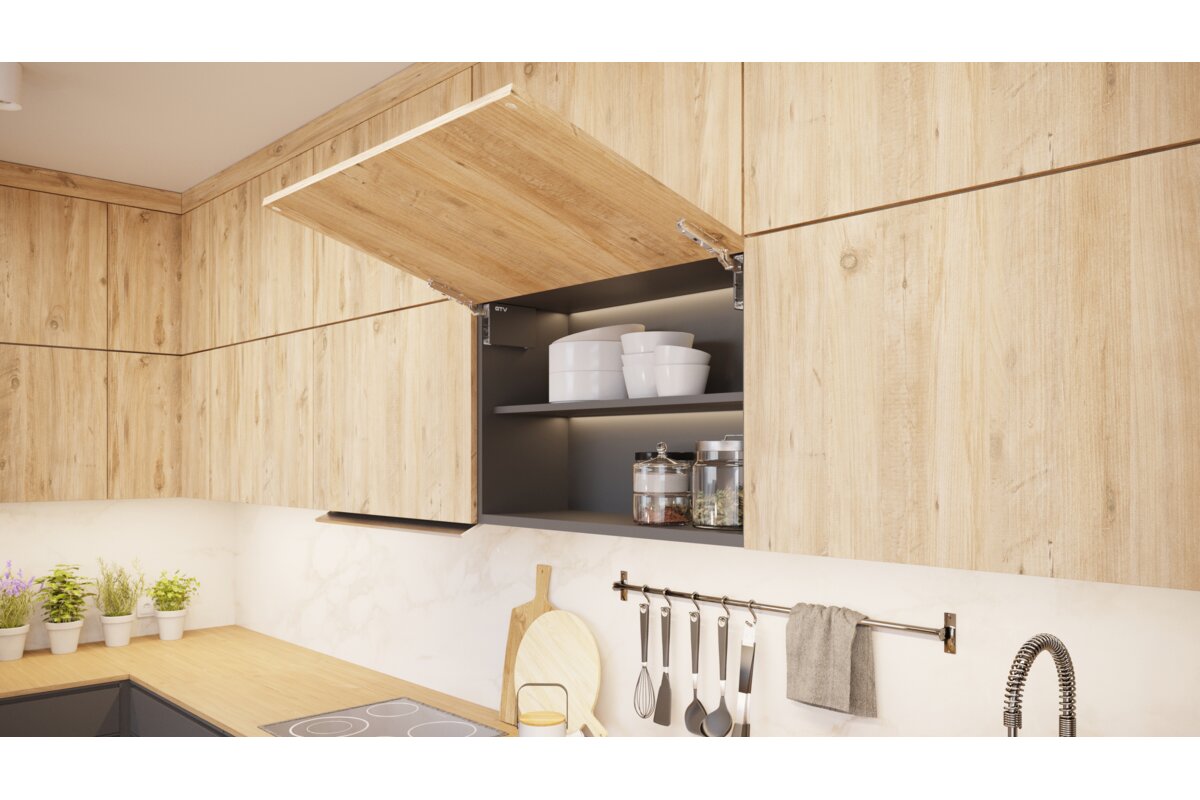

A mechanical lift that makes it easy to design functional and modern wall cabinets. It provides smooth movement and cushioning when closing cabinets. It allows the flap to be stopped in any position set by the user. It has as many as 3 types of adjustment: force, closing time and opening angle in the range of 90° to 105°. The lift will be used in flaps with a height of 300 mm to 650 mm. The choice of up to four spring strength variants adapted to the height and weight of the front enables a wide range of applications. There are 3 color variants of the end caps: white, anthracite and black. Simple installation, without the use of additional templates or measurements, where the structure of the lift is also its assembly template.
– Mechanical lift;
– Front height from 350 to 650 mm;
– No hinges required;
– Approximate opening angle 90 – 107°;
– Soft close;
– Spring force 2000-4050;
– 3 types of regulation – force adjustment, closing time adjustment;
and opening angle adjustment;
– Simple installation without the need for a template;
– Possibility to stop the flap in any position;
– Colour: anthracite;
– Includes mechanism grilles, mounting screws, opening angle limiters.
