Index: A-HRS10-405-05T

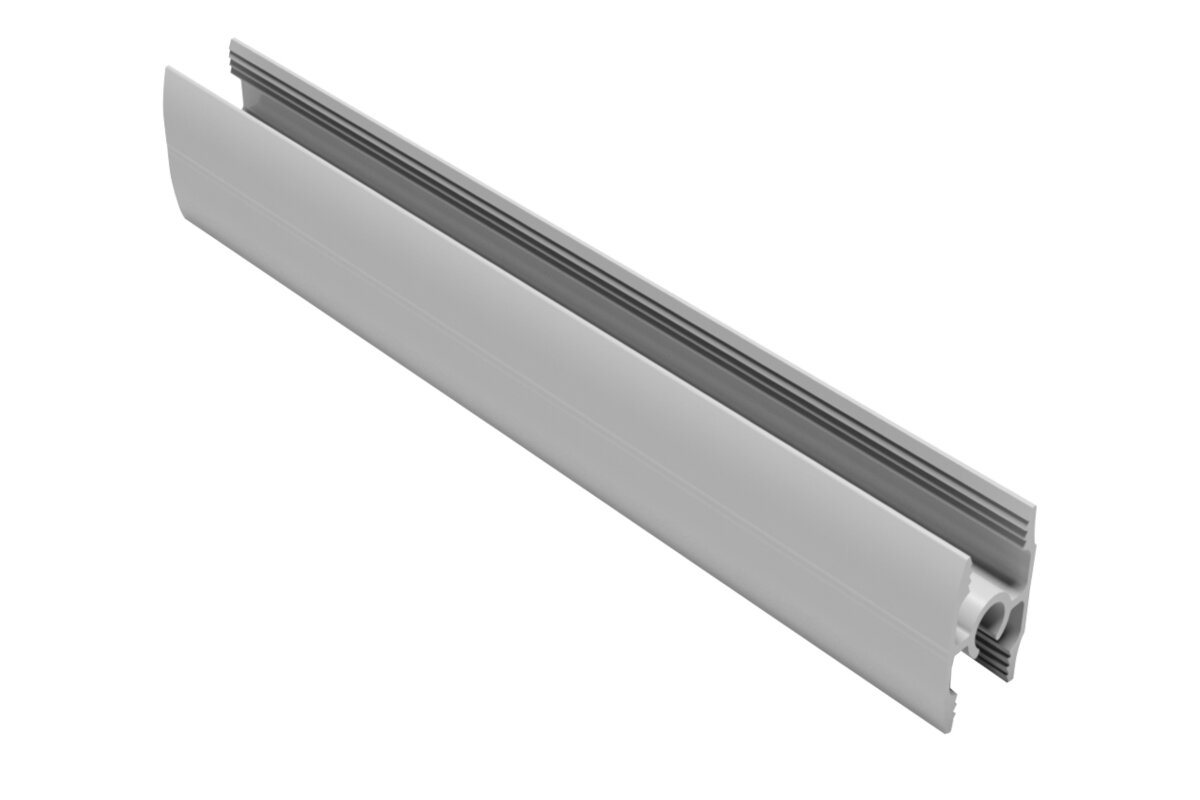

Profile HRS 10/4mm, L=4,05 m, aluminum
| Frame/frameless system | frame |
|---|---|
| Length [mm] | 4050 |
| Material | aluminium/cast iron |
| Colour | aluminium |
| Quantity in package | 14 |
| Warranty | 2 years |
Product description
The HRS10 profile is used to make combinations of different infill decors within one door leaf, for example: plate-to-plate, plate-to-glass, glass-to-glass (10 mm plate, 4 mm glass). For the installation of glass fillings use a gasket. Used in 10/4 mm frame systems. The profile, as a component of the door frame, must be permanently connected to the handles by means of metal screws. Available in 2 colors and 4 lengths.
The profile does not fit the Flat Line handle
- Optimum anode coating thickness 10-15 μm
- has a socket for a metal screw;
- Additional machining processes to help keep the coating clean
- corrosion resistance
- easy processing and assembly
- durable and environmentally friendly
- application for joining 10 mm furniture board and 4mm glass;
- length: 4050 mm;
- profile to be cut;
- Material: Aluminum;
- Colour: silver.
